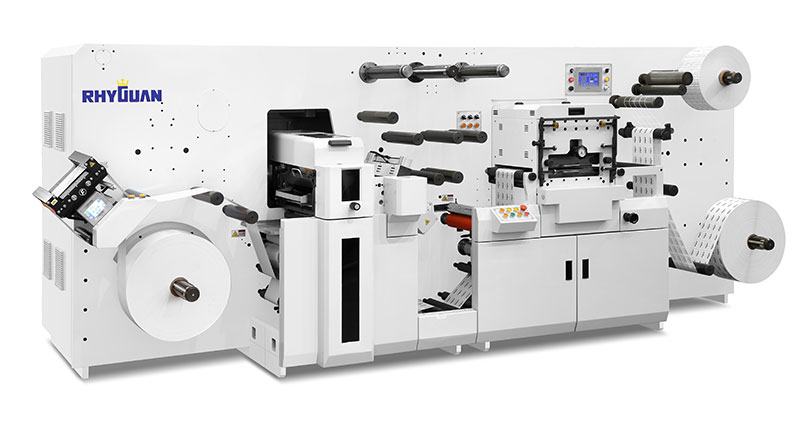

KISS-300PLUS-2 Varnishing Die Cutter

Video
Main Advantages
  • Being cost-efficient, the varnishing die cutter is used for high quality converting and finishing.
  • Features unwinding, cold foiling, super varnishing, semi or full flexo printing.
  • Designed with flat bed die cutting, slitting and sheeting.
  • Fully servo driven operation provides high productivity.
Technical Parameters
Max Web Width 330 mm
Max Flexo Printing Speed (full-rotary) 90m/min
Max Flexo Printing Speed (semi-rotary) 60m/min
Registration Accuracy ±0.15 mm
Max Unwinder dia. 700mm
Max Rewinder dia. 700mm
Max Flat Bed Die Cutting Speed 120m/min
Min Slitting Width 16mm
Registration Mark Sensor
Dimension 4520x1700x1790mm
Weight 4200KGS

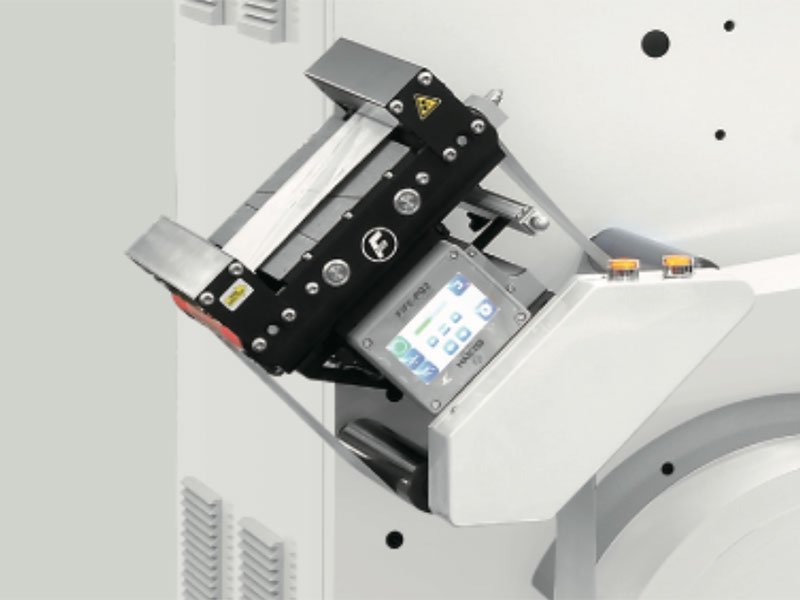

  • Unwinder & Web Guiding
    1. Unwinder with closed-loop tension control.
    2. Electronic web guide with ultrasonic edge guide sensor.
    3. 76 mm air expanding mandrel.
    4. Optional roll diameter: 700 mm–1000 mm

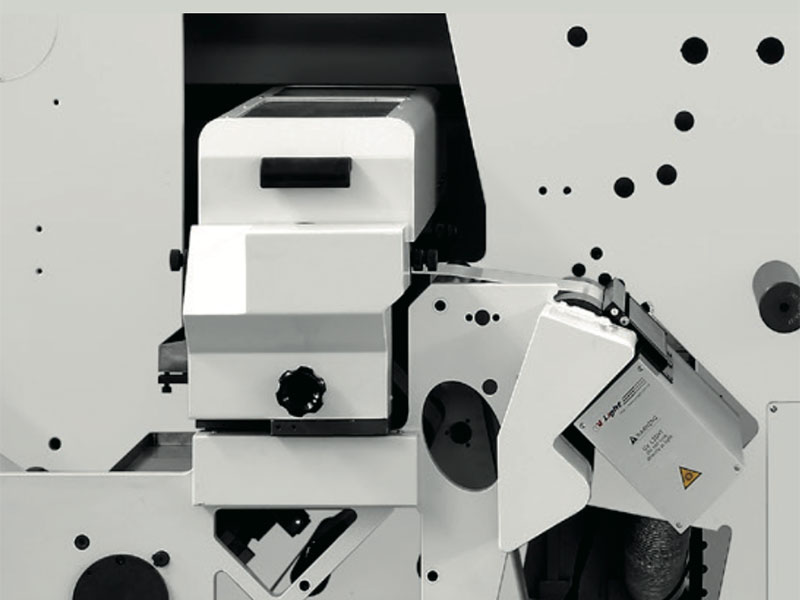

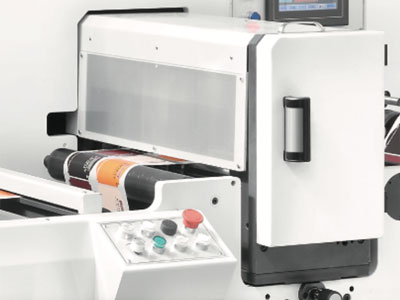

  • Flexo Printing Unit
    1. Independent, servo-driven semi-or full rotary printing unit with auto pre-positioning and registration.
    2. Optional reverse side printing.
    3. Printing repeat lengths of 50 mm-457 mm.

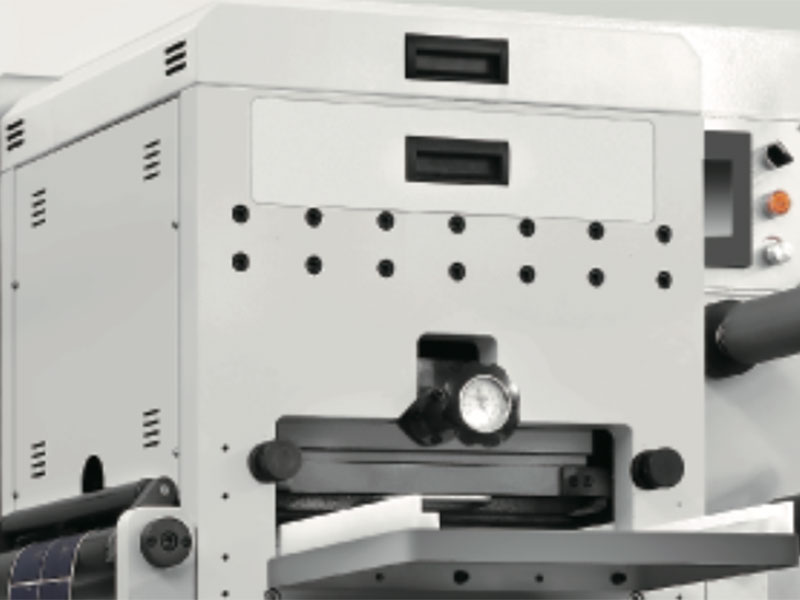

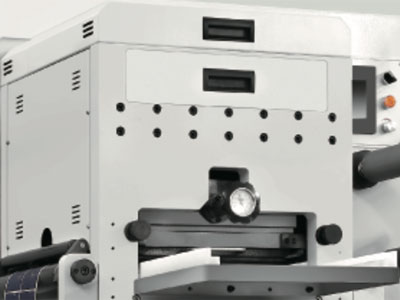

  • Flatbed Die-Cutting
    1. High speed precision flatbed die-cutting unit with maximum speed of 400 stamps/minute.
    2. It features a high-precision step-and-repeat of max 300mm for a high speed throughput of max speed of 120m/min.
    3. The servo controlled die-cutting pressure makes the module is also suitable for embossing.

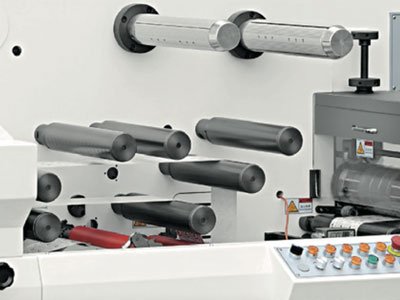

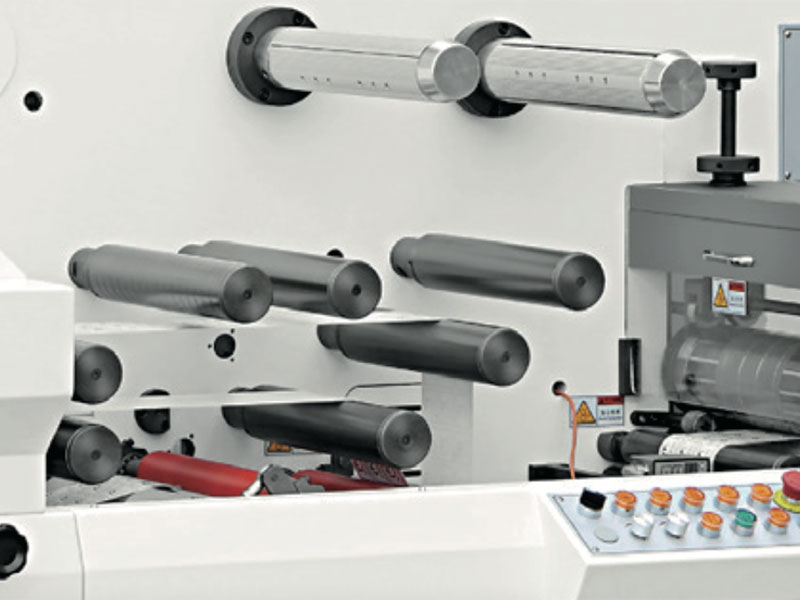

  • Cold Foiling & Super Varnishing
    1. Cold-foil and super varnish with two pneumatic shafts and unwind/rewind.
  • Slitting Options
    1. Add shear slitting knives.
    2. Increase productivity with automatic shear slitting to control the knives from the user-interface.
    3. Optional further automation and razor blades.

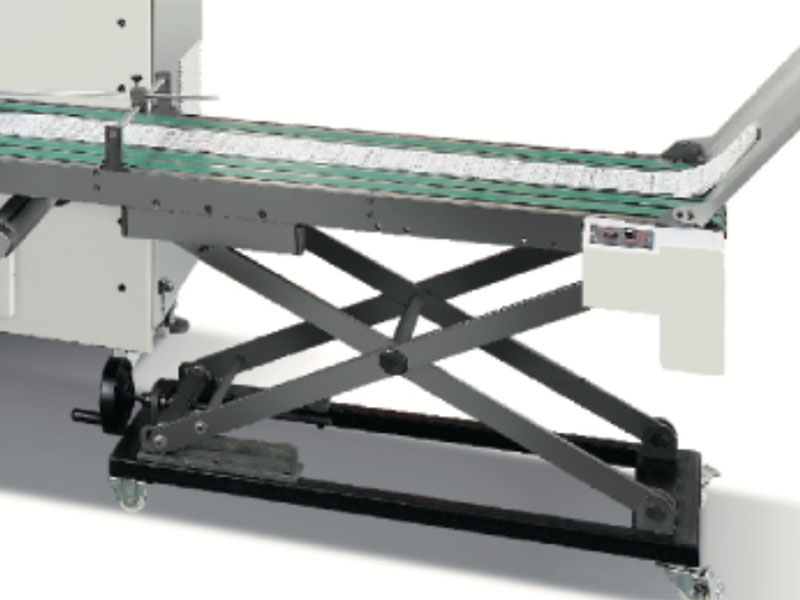

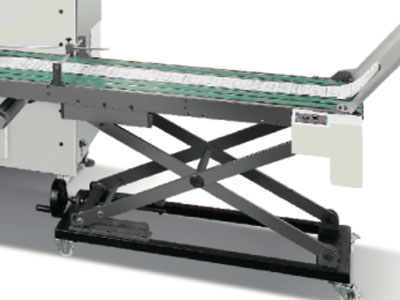

  • Cut-Sheet Delivery
    1. High speed rotary cut-sheet module with a conveyor belt enables sheet cutting and collations.
    2. It can be upgraded with an automatic stacking unit and combined with single and dual rewind options for optimal flexibility.

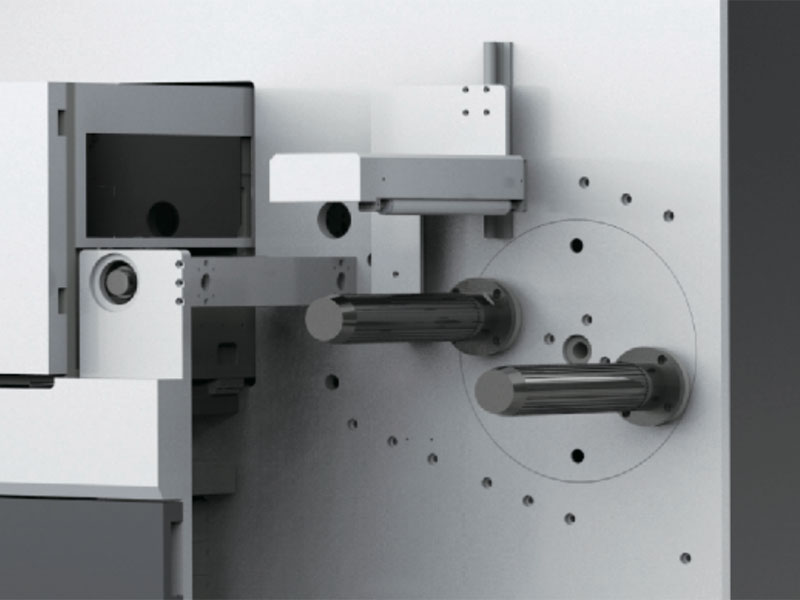

  • Rewinding Options
    1. Standard single rewind.
    2. Upgrade to dual rewind, or a productive Turret rewinder with buffer and automatic cutting of the web for optimal productivity.
