As market share for labeling grew, RHYGUAN has developed high speed flatbed die cutting machine. KISS-330SD high-speed flat die cutting machine adopts a unique web delivery technique, reaching maximum speed of 120m/min(400times/min), The whole machine runs in a uniform speed, except for the cutting unit, which operating in an intermittent fashion.
|Max Speed||120 m/min|
|Accuracy of Adhesive Cutting||±0.15 mm|
|Max Web Width||330 mm|
|Max Unwinder dia.||700 mm|
|Max Rewinder dia.||700 mm|
|Air Supply||0.4 ~ 0.6 MPa|
|Total Motor Power||14 kw|
|Dimension||2800 x 1300 x 2000 mm|
|Min slitting width||16 mm|

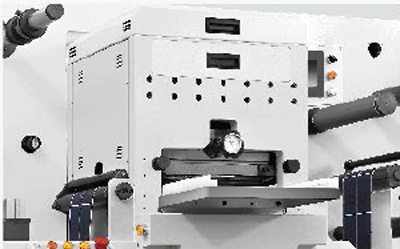

Flatbed die cutter
Independent, servo-driven high-speed cutter for adhesive paper, labels and laser marks.

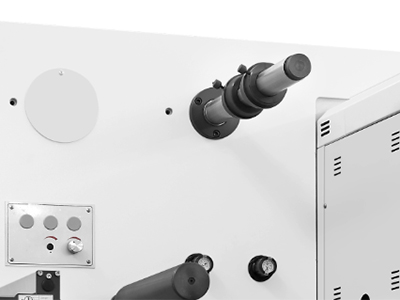

Unwind and guiding system

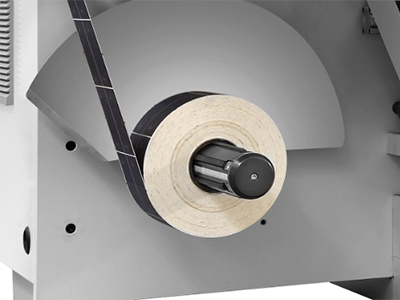

Unwinding and guiding system are both servos driven, it includes 76mm automatic air expanding unwind mandrel, roll end braking mechanism, variable tension control and automatic compensation mechanism with ultrasonic guiding system/web feeding station Self-locking compression cylinder. Maximum linear unwind capacity is up to 700m or 1000m.
Optional, tension-controlled lamination for liner or lineless substrates.

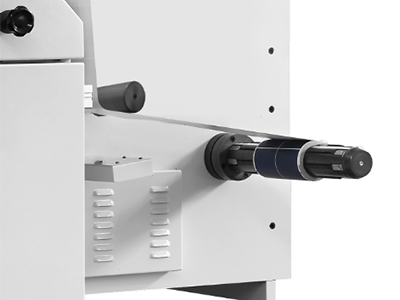

Rewind system includes 76mm automatic air expanding mandrel and variable tension system. Maximum linear rewind capacity is up to 700m.Suitable for all sorts of slitters.
