IDC-330DL Laser Die Cutting Machine

IDC-330DL laser die cutting machine combines laser cutting and semi rotary circular blade cutting, no need for cutting die, flexible and highly effective. Suitable for most adhesive including PE, PET, PP, etc. The machine can perform rotary web cutting, singular sheet cutting, or other adhesive cutting which was unachievable by other laser cutting machines.

Technical parameter
Laser Head RF metal CO2 laser
Laser Power 180 W
Accuracy of Adhesive Cutting ±0.15 mm
Registration Mark Sensor
File format PLT/DXF
Max Web Width 330 mm
Max unwinder dia. 700 mm
Max rewinder dia. 700 mm
Total Motor Power 9 kW
Dimension 3450 x 1690 x 2135 mm
Weight 2900 KGS
Min Slitting Width 16 mm
Introduction

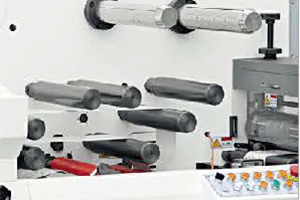

Slitter
Optional shear slitter or razor blade slitter. Easy to install. Features a standard high pressure waste suction system.

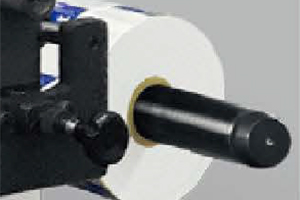

Unwinder & Web Guiding
Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensor. 76mm air expanding mandrel. Max unwinder diameter: 700mm.

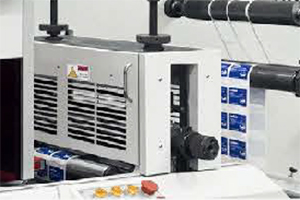

Semi rotary/ full rotary cutting
Using independently controlled servos and marks registering sensors for precise positioning, magnetic mandrel or engrave mandrel for semi rotary or full rotary cutting. The linear length PLUS series machine for semi rotary cutting range from 50mm till 380mm, while TOP series range from 50mm to 330mm. The cutting range for full rotary cutting ranges from 190.5 to 476.6mm. Cylinder die of different sizes are available for purchase.

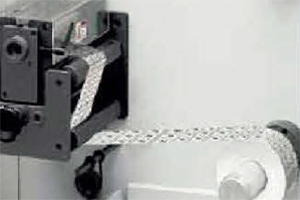

Cold foil & high gloss
Applicable for lamination, cold foil and high glossing

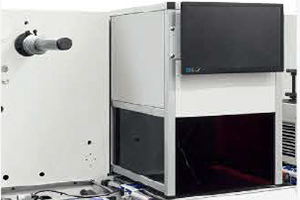

  • Laser die cutting station Highly efficient and flexible application, compatible with PET, PP and more.
  • Rewinder Rewinder with closed-loop tension control system ensures continuous stable tension. 700 mm maximum rewind diameter.
