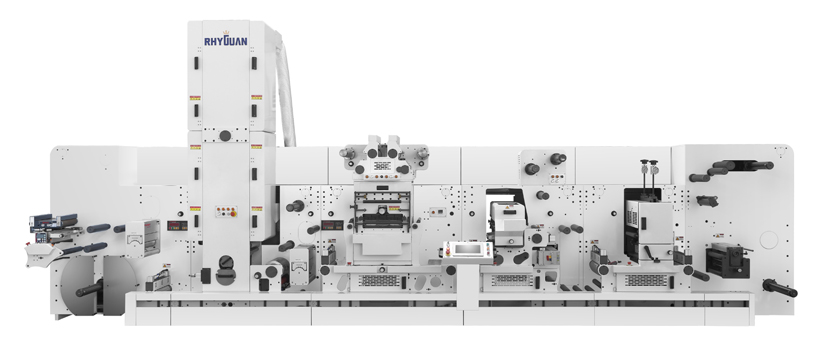

    PLUS 330 Gravure Printing Machine

    Video

    PLUS 330 Gravure Printing Machine is mainly for adhesive coating, manufacturing adhesive label, such as anti-forgery label, package tape, adhesive tape, processing adhesive material and permanent lamination.

    Two main function of PLUS 330 Gravure Printing Machine
    1.Adhesive coating on non-adhesive material (backing sheets, adhesive surface), perform coating according to own needs
    2.Surface coating on adhesive material to eliminate waste. Suitable for digital and pharmaceutical application which have higher demands for such application.

    Technical parameters
    Max Unwinder dia. 700mm
    Max Rewinder dia. 700mm
    Max Gravure Coating Speed 60m/min
    Max Back Face Adhesive Coating Speed 30m/min
    Introduction

    Semi rotary/ full rotary cutting
    Independently controlled servo driven and marks registering sensor for precise positioning, the linear length for semi rotary cutting ranging from 50mm till 380mm.
    Cylinder die of different sizes are available for purchase.

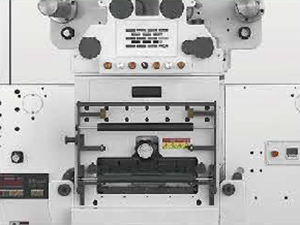

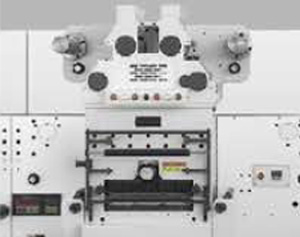

    Flat bed die cutter with hot stamping
    Independent, servo driven high-speed cutter for adhesive paper, laser hologram marks.

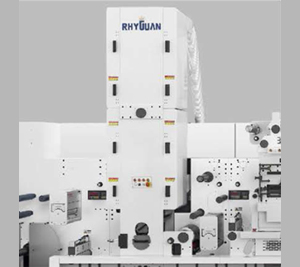

    Rotogravure
    Rotogravure unit for adhesive coating, manufacturing adhesive label, anti-forgery label, packaging tape and permanent laminating. The unit also can be use for surface coating, HP digital printing precoating, UV printing protective coating, matte coating, etc.

    Hot foil feeding/ deliver system
    Hot foil stamping is low cost and easy to operate. The unit has independently controlled servo for different speed between hot foil stamping and cutting machine to minimize waste. Maximum hot stamping area is up to 300mm*300mm.

    Flexo printer
    Client can choose between semi rotary mode and full rotary according to the material fed. Flexo printer includes independently controlled servo, ink fountain, doctor plate, plate and impression rolls. As for drying mechanism, there are hot air drying or IR/UV curing, both which can be easily installed. Impression roll linear length range from 50mm to 457mm, the maximum width of coating is 320mm.

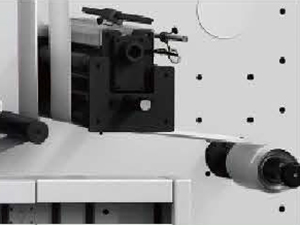

    Slitter
    Circular razor, straight blades are available for purchase, they can be adjusted and setup easily, the male and female blade for shear cutting can be install or adjust easily. We will supply six complete sets of blades.

    IML system
    IML die cutting system is quick to install and remove.
    Static eliminator in label collection table works with a counter and a stepless speed controller
