TOP-330-2 Multi-Functional Label Die Cutting Machine

Video
Main Advantages
  • Cost-effective die cutting solution developed by Rhyguan
  • IML (in mold label) die cutting process solves the problem of low productivity that traditional similar products usually have.
  • Easy switch between full rotary mode and semi-rotary mode
  • Ideal for testing or cutting of IML film materials in small quantities
  • Options of laminator, slitter and sheeter available for none-stop conversion process
Technical Parameters
Max Die-cutting Speed (semi-rotary) 60 m/min
Max Die-cutting Length (semi-rotary) 330 mm
Accuracy of Adhesive Cutting ±0.15 mm
Accuracy of IML Cutting ±0.25 mm
Registration Mark Sensor
Max Web Width 330 mm
Max Unwinder dia. 700 mm
Max Rewinder dia. 700 mm
Standard Magnetic Cylinder 120 T
Total Motor Power 10 kw
Dimension 2900 x 1200 x 1500 mm
Weight 2800 KGS
Power Supply AV, 380 V, 50 HZ
Air Supply 0.4~0.6 MPa
Min Slitting Width 16 mm

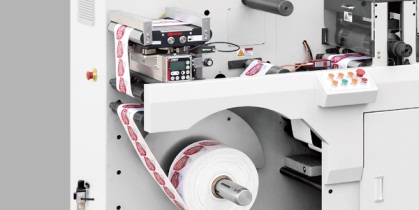

Unwinder & Web Guiding

Unwinder with closed-loop tension control.
Electronic web guide with ultrasonic edge guide sensor.

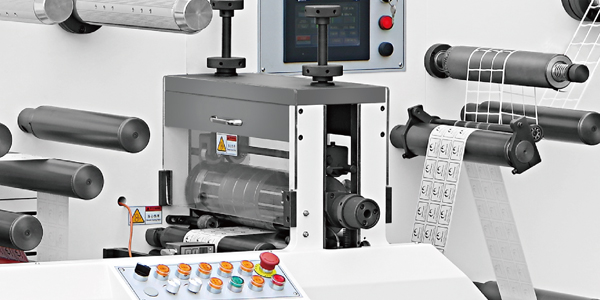

Semi- or Full Rotary Die Cutting

Independent and servo-driven.
Repeat lengths 50mm-330mm (semi-rotary) and 190.5mm-476.25mm (full rotary).

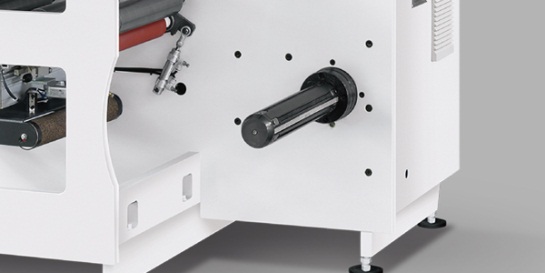

Rewinder

Rewinder with closed-loop tension control system ensures continuous stable tension.
700 mm maximum rewind diameter.
