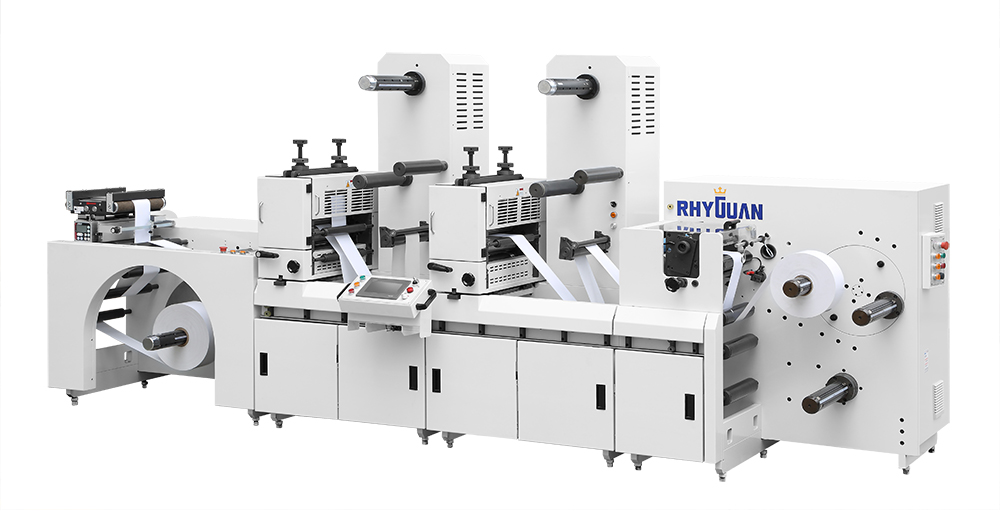

All servo driven plain label adhesive double station cutter is suitable for cutting plain label, it has great production capacity compared to conventional die cutting machine, it has no need for marks registering, resulting in faster rotary die cutting speed and increased production capacity.
Plain label rotary die cutting machine can cut both side of the adhesive, featuring optional position registration system, thus the machine is able to perform multiple process at once.
|Max Die-cutting Speed (rotary)||120 m/min|
|Max Die -cutting Length (rotary)||190.5 - 647.7 mm|
|Accuracy of Adhesive Cutting||±0.15 mm|
|Max Web Width||330 mm|
|Min Slitting Width||16 mm|
|Blades installed||6 sets|
|Max Unwinder dia.||700 mm|
|Max Rewinder dia.||700 mm|
|Air Supply||0.4 ~ 0.6 MPa|
|Total Motor Power||16.5 kw|
|Dimension||4200 x 1200 x 1800 mm|

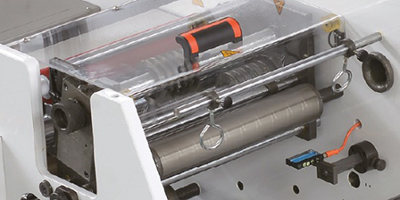

Circular blades, razor blades and straight blades are available for purchase, they can be adjusted and setup easily. We will supply six complete sets of blades and high-pressure waste vacuum system is attach with the machine.

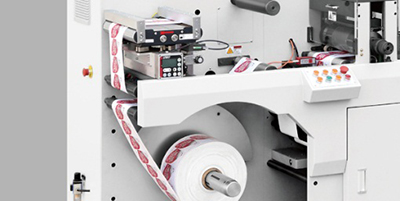

Unwind and guiding system
Unwinding and guiding system are both servos driven, it includes 76mm automatic air expanding unwind mandrel, roll end braking mechanism, variable tension control, automatic guiding mechanism and feeder. Maximum linear unwind capacity is up to 700m or 1000m.

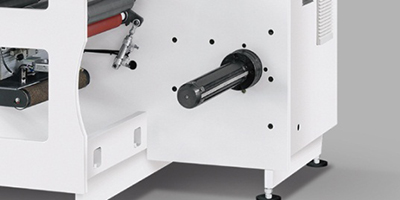

Rewind system includes 76mm automatic air expanding mandrel and variable tension system. Maximum linear rewind capacity is up to 700m.

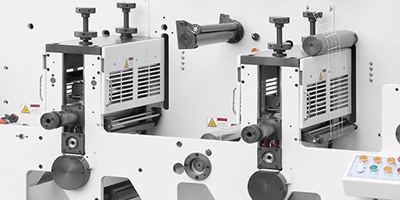

Double station full rotary cutter unit
Double station full rotary die cutter with independently driven servo for high precision and speed.

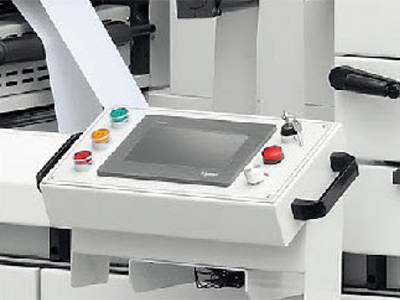

Movable touchscreen control panel with intuitive control interface and visualization system allows for easy operation by a single person.
Two-way collection setup
Two-way collection system can be setup to increase collection speed
