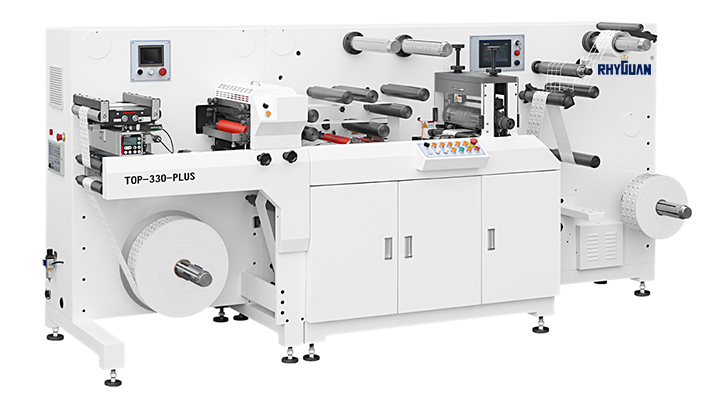

TOP-330 PLUS Multi-Functional Label Converting Solution
The TOP-330 PLUS label converting machine is a label finishing system that includes a flexographic printing system (cold stamping, UV coating, super varnishing, and dot varnishing), lamination, a rotary screen printing system, a semi-rotary die cutting system, sheeting and collection, and rewinding. This cold stamping label machine features a servo-driven system, user-friendly design, high accuracy, and efficiency.
-

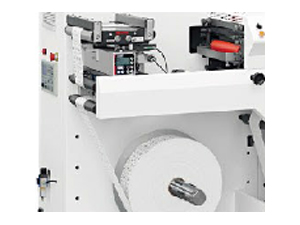

Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensor. 76mm air expanding mandrel. Max diameter 700mm-1000mm roll capacity.
-

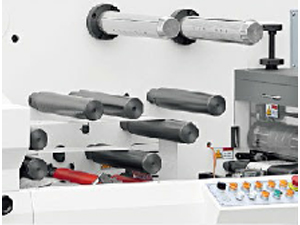

Cold-foil and super varnish with two pneumatic shafts and unwind/rewind.
-

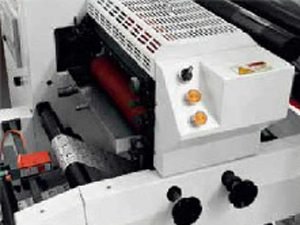

Independent, servo-driven full rotary printing unit with auto pre-positioning and registration.
-

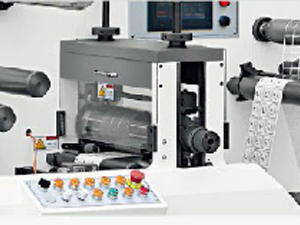

Independent and servo-driven. Repeat lengths from 50mm-330mm for semi-rotary, and 190.5mm-476.25mm for full rotary. Magnetic or solid/engraved cylinders.
-

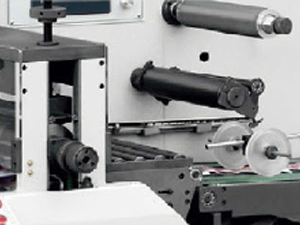

IML die-cutting system designed for easy installation and removal. Static eliminator in label output collection table works with counter and stepless speed regulation.
-

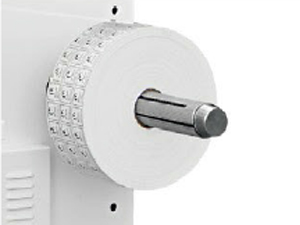

Rewinder with closed-loop tension control system ensures continuous stable tension. 700mm maximum rewind diameter.
| Max Speed | 300RPM |
| Register Accuracy | ±0.15mm |
| Accuracy of Cutting | ±0.15mm |
| Max Printing Width | 290mm |
| Printing Girth | 55T-1 6 0T |
| Max Print Area | 508 mm ×320mm (L×W) (160teeth print cylinder) |
| Max Die Cutting Area | 381mm ×320mm (L×W) 9mag. Cylinder in 120 teeth) |
| Paper Width | 80mm ---330mm |
| Max Unwinding Dia | φ700mm (about 2000Meters) |
| Max Rewinding Dia | φ700mm (about 2000Meters) |
| Magnetic Cylinder | 120Teeth 1/8 (Standard) |
| Length of Die Cutting | 50mm ~330mm |
| MOTOR Power | 8 KW |
| UV Lamp Power | 4.8KW |
| Overall Diameter ( L×W×H ) | 3600mm ×1200mm ×1500mm |
| Weight | 3000KG |
Unwinder--Web guider--Flexo system (UV coating and printing and cold foil)----Die cutting (semi-rotary and rotary) ---Rewinder
A: Unwinding
B: Web Guider
C: 120teeth/381mm magnetic cylinder (15inch cylinder)
D: Servo motors (Panasonic imported from Japan)
E: HMI touch screen operating system (Schneider+PLC)
F: Flexographic printing system with re-register and foil laminator
G: UV system in 220W/CM
