TOP-330UD Standard Varnishing Die Cutter

This product has been discontinued and removed from our shelves.

The TOP-330UD product range features a modular design that makes our digital printing and finishing machine less costly. It is complete with flexo varnishing module, semi-rotary die cutter, as well as the options of cold foil, IML cutter, slitter or sheeter upon request. If you are looking for a label converting machine that can perform multiple converting and finishing processes inline with high quality and productivity, this product could be your best choice!

Technical Parameters
Max. Speed (Semi Rotary Die cut) 300cycle/min (≈60m/min)
Max. Full Rotary Speed 110Meters/min
Accuracy of Adhesive Cutting ±0.15mm
Accuracy of IML Cutting ±0.25mm
Max. Die Cutting Area 330mm×320mm (L×W)
Paper Width 100-330mm
Max. Unwinding Dia. ø700mm (≈2000meters)
Max. Rewinding Dia. ø700mm (≈2000meters)
Magnetic Cylinder 120Teeth 1/8”CP (Standard)
Repeat Length of Die Cutting 50mm~330mm
Motor Power 10kW
Overall Diameter (L×W×H) 2900mm×1200mm×1500mm
Weight 2800KGS
Power Supply AV, 380V, 50HZ, 3 phases, 4 wires
Air Pressure 100p.s.i

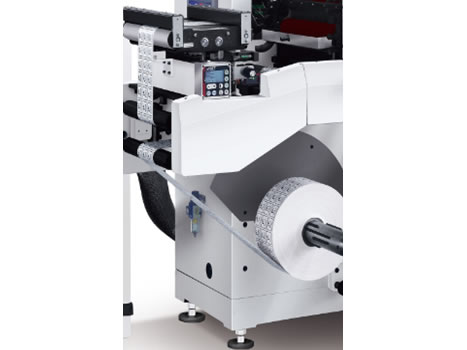

  • Unwinder
    1. Closed-loop tension control
    2. Machine stops or decelerates when less paper is fed.

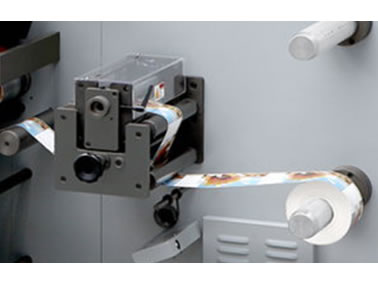

    3. Automatically controlled web guider with ultrasonic system

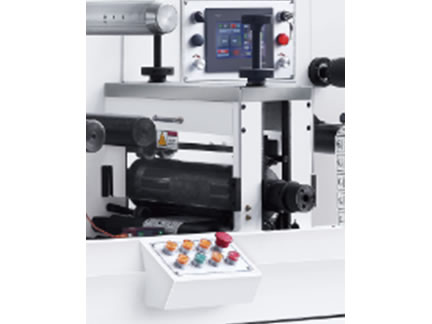

  • Semi-Rotary/Full Rotary Die Cutter
    1. Independent servo driver works with mark sensor.
    2. Both the magnetic and solid cylinders fit in semi-rotary and full rotary cutting.

IML System
1. IML die cutting system is quick to install and remove.
2. Static eliminator in label collection table works with a counter and a stepless speed controller.

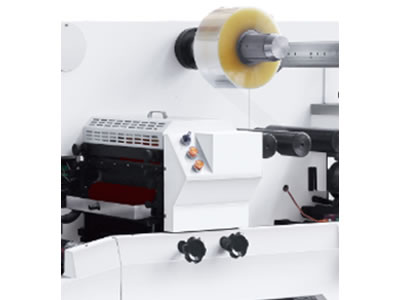

  • Flexo Printer
    1. Rotary flexo unit with semi-rotary or rotary mode as required
    2. Applied in cold foil and spot varnishing
    3. Compatible with hot air

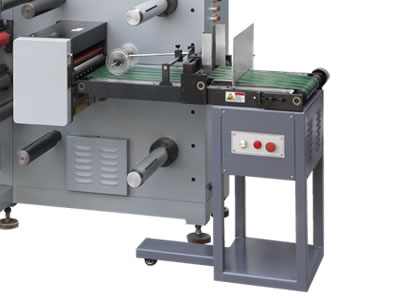

  • Sheeter
    1. Independent servo drive
    2. Easy setup
    3. Equipped with mobile collection system
  • Slitter
    Available with a choice of circular or linear blades
