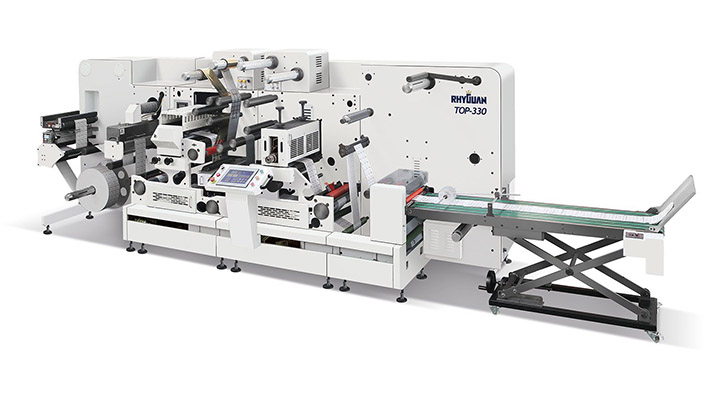

TOP-330 Ultra Flexo Rotary Die Cutting Machine

This product has been discontinued and removed from our shelves.

The Ultra Flexo rotary die cutting and finishing machine works in both rotary and semi-rotary mods. Designed for various varnishing processes, the label finisher comes in modules features an optional inkjet press platform and die cutting, slitting, and sheeting functions.

Technical parameters
Max Speed 300Cyles/min(65meters/min)
Accuracy of Print ± 0.15mm
Max Die Printing Area 330mm ×320mm (L×W)
Max Die Cutting Area 330mm ×320mm (L×W)
Paper Width 80mm ---330mm
Max Unwinding Dia. φ 700mm (about 2000Meters )
Max Rewinding Dia. φ 700mm (about 2000Meters )
Magnetic Print Cylinder 120Teeth 1/8 "CP ( Standard )
Magnetic Mag. Cylinder 120Teeth 1/8 "CP ( Standard )
Cylinder Range 55T~160T
Length of Die Cutting 50mm ~330mm
MOTOR Power 8 KW
UV POWER (KW) 7.5kW
Overall Diameter (L × W × H) 2900mm × 1200mm × 1500mm
Weight 2500KG
Standard configuration

A: Unwinding
B: Web Guider
C: 160 teeth printing cylinder
120 teeth/381mm magnetic cylinder (15 inch cylinder)
D: Servo motors (Panasonic imported from Japan)
E: HMI touch screen operating system (Schneider+PLC)
F: Rewinder and waste matrix mandrels
