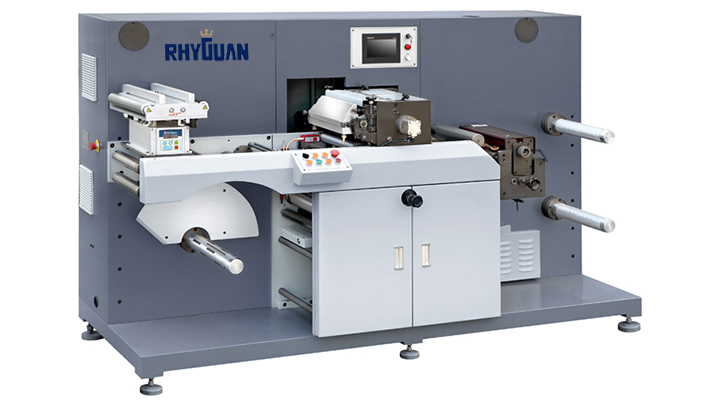

SRF-330 Semi-automatic rotary varnishing machine

This product has been discontinued and removed from our shelves.

The SRF-330 semi-automatic rotary varnishing machine is the best solution for digital converting processes such as flexographic coating and finishing. Driven by a servo-motor system, the rotary flexographic coating machine works in both rotary and semi-rotary modes with register, spot varnishing and flood coating. Optional IR dryer and UV curing system.

Technical parameters
Max Coating Speed 300Cycles/Min
Accuracy of Print ± 0.15 mm
Max Print Area 320mmX 450mm (W*L)
Paper Width 330mm
Max Unwinding Dia . 700mm
Max Rewinding Dia . 700mm
Standard Print Cylinder 160Teeth 1/ 8" CP(Standard)
UV Power 7.5kW
IR Power 12KW
MOTOR Power 8KW
Overall Diameter ( L×W×H ) 2500*1600*1600
Weight 1700KGS
Standard configuration

A: Unwinding
B: Web Guider
C: 160 teeth printing cylinder (unchangeable)
D: Servo motors (Panasonic imported from Japan)
E: HMI touch screen operating system (Schneider+PLC)
F: Slitter
G: Rewinder and waste matrix mandrels

Detail Configuration
Part SRF-330
Main Control System TRIO system (UK)
Tension P+F/ultrasonic system (German)
Powder Clutch Leesun (Taiwan)
Web Guiding BST (German)
Servo Motors Panasonic (Japan)
Sensors Leuze (German)
Touch Screen Schneider
Reducer Apex (Taiwan)*4/or Shimpo(Japan)
Electric Components Schneider
Gears and Bearings NSK (Japan)
Screws 12.9 Levels
Magnetic Cylinder Rotary (CN)
Power Switch Schneider
Pneumatic Switch Schneider
Switch Meanwell (Taiwan)

Note: The listed parts may change.
